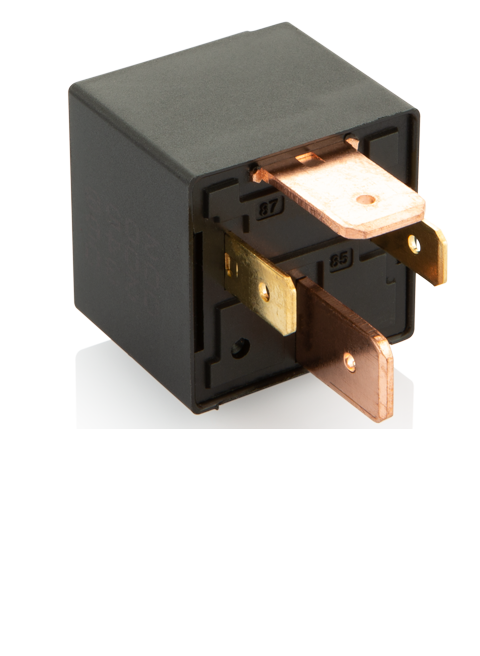

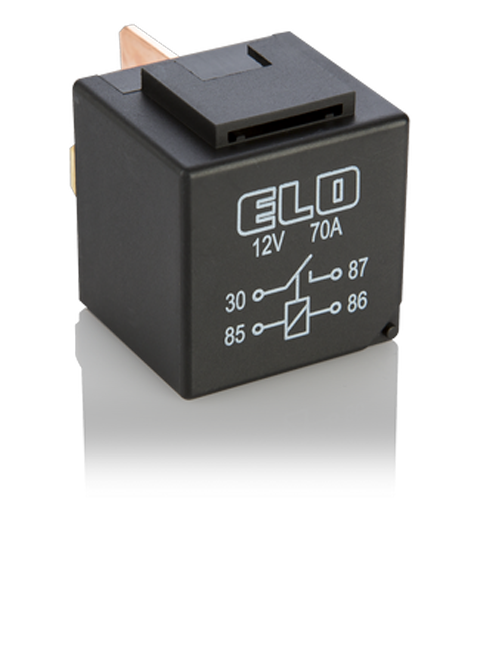

Nominal Voltage 12V
Nominal Continuous Current 70A
Terminal Structure 1 Form A/SPST NO
IP Rating IP54 DIN IEC60529
Key features
- Excellent switching stability
- Plug-and-play installation
- OEM fit and performance
- Suitable for resistive, inductive and lamp loads
- Available with resistor or diode suppression
- High continuous current capacity
- Reliable operation in harsh environments
- Multiple contact configurations available
High continuous current capacity

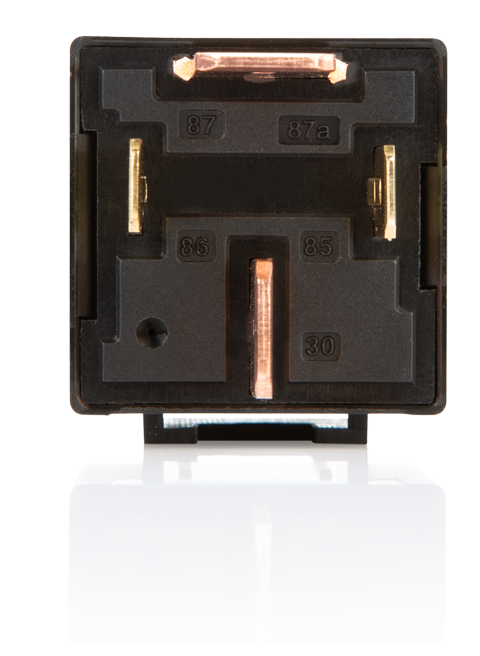

Standard ISO terminal layout
Long electrical life
Terminal Structure and Dimensions
All dimensions are in millimetres.
Diagram
Performance Characteristics
Coil Temperature Rise
Operating Voltage
Maximum Voltage
Minimum Voltage
Life Expectancy
Accessories
| Product code | Product |
|---|---|
| 207.240.291 | Relay Socket w/ 4 Cables |
| 207.200.001 | Relay Socket w/o Cable |
| 207.240.000 | Relay Socket w/ 4 Pins |
Technical Data
| Nominal Voltage | 12V | Maximum Inrush Current | 250A |
|---|---|---|---|
| Nominal Continuous Current | 70A | Switching Cycles at Resistive Load | 100.000 |
| Terminal Structure | 1 Form A/SPST NO | Switching Cycles at Inductive Load (Motor) (Nominal current must be reduced by 20%) | 100.000 |
| Contact Material | AgSnO2 | Switching Cycles at Capacitive Load (Lamp) (Nominal current must be reduced by 25%) | 100.000 |
| Pick-up / Drop-out Voltage | <9,0V / >1,2V | Vibration | 20-200Hz,5g:>100us |
| Maximum Coil Voltage | 20V (<1 min.) | Mechanical Shock | >10g, 11ms:>10us |
| Coil Resistance (at 25 °C) | 90Ω (+%5/-%15) | IP Rating | IP54 DIN IEC60529 |
| Coil Suppression | - | Terminals - ISO 8092 | 6,3 x 0,8 mm |
| Mechanical Life (On/Off) | >1.000.000 | Terminal / Plating | CuZn63 / - |
| Pick-up / Drop-out Time | <10ms / <15ms | Bracket / Plating | Fe / E-Ni |
| Dielectric Strength | >1000Vdc | Ambient Temperature | -40/+80 ºC |
